Report Builder 2.0 - Data Regions Page - 2

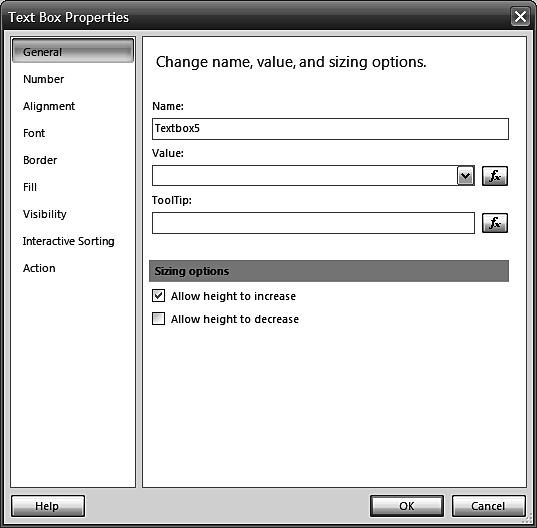

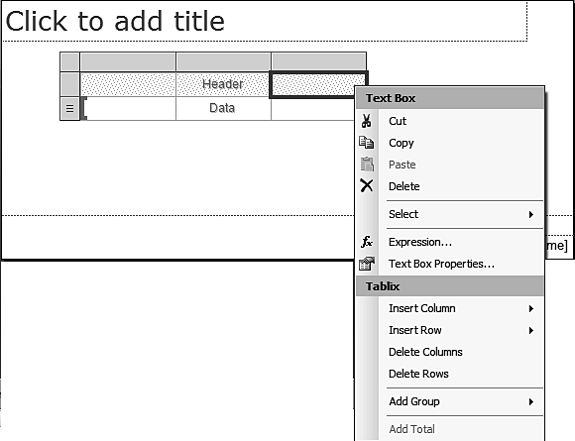

When you click on the properties of the textbox, the Text Box Properties window is displayed. The textbox has several properties which are arranged on the left as a list with each item having its own page as shown. The Help button on any of the pages will take you directly to the definition of the properties and is extremely useful.

In the General page, you can make changes to the elements in the Name, Value, and Sizing options page as shown. The Value is one which you choose among the column values (from the drop-down) from the dataset. You may also add a text for the ToolTip, which will display this text when the report is generated and this cell is accessed by hovering over it in the report. Alternatively you can set the Value and Tooltip using fx—the button that brings up the Expression window.

In the Number page you can set the number and date data type formatting options for the cell that contains a number or a date. This is what you normally would find in most Microsoft products such as Excel and Access.

In the Alignment page you can choose the vertical and horizontal alignments as well as the padding of the textbox content from the edges of the cell.

Similarly the Font and Border properties are the same ones you find in most Microsoft products.

The Fill property lets you add or change background color to the report as well as add a graphic element. The graphic element can be embedded, external, or originate from a database (being one of the fields accessed). Expressions can be developed to set a desired color for the Fill.

The Visibility of the textbox can be any of Show, Hide, Show or Hide based on an expression. In each of these cases the visibility can be toggled when another table cell is clicked (which can be chosen). This page also gives access to the Expression window which is similar to the MS Access expression builder.

The Interactive Sorting page allows you to define interactive sorting options on the textbox.
