In this window, you can carry out a number of tasks such as creating a new report, opening an existing report, saving a report, and saving a report with a different name.

The Save button saves it to the default location seen earlier and Save as invokes the same window to save the report with a different name as seen earlier displying the report server instance as the Save to location.

The Recent Documents pane shows the more recent reports created with this tool.

New allows you to create a new report. When you click on Open, the following Open Report window gets displayed with the default location http://Hodentek2:8080/ReportServer_SANGAM/My Reports. You will also notice the message: This folder is not available because the My Reports feature is not enabled on the computer. Also the Open Reports window allows you look for reports with the extension .rdl.

Therefore, unless the My Reports feature is enabled, this window is unusable. This is supposed to be possible from Report Manager but there are no controls in Report Manager that would do this. An alternative was suggested by one of the MSDN forum moderators (see http://social.msdn.microsoft.com/forums/en-US/sqlrepor...). Hands-on exercise 6.1 describe how you may enable My Reports. The idea of My Reports is similar to My Documents where each user can keep his reports.

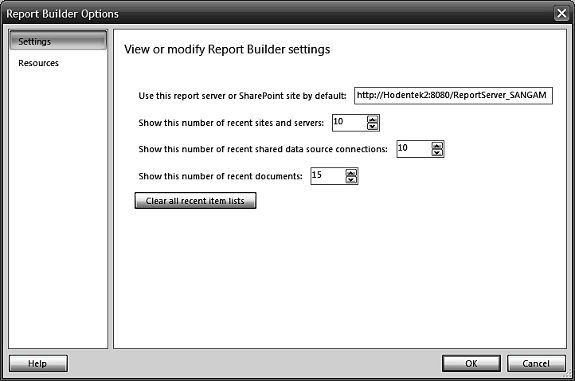

When the Options button (in the previous screenshot) is clicked it opens the window Report Builder Options window with two tabbed pages Settings and Resource shown as follows:

Here you can view, as well as modify, Report Builder settings. The defaults are more than adequate to work with the examples in this book.

Clicking on the Resources button brings up this interesting window which enables you to interact with Microsoft regarding SSRS activities, concerns, community, and so on. If you are serious about Reporting Services, these are very valuable links. The About button when clicked can provide you with Report Builder version information.

The ribbon

The main menu consists of Home, Insert, and View menu items which are part of the "ribbon". The ribbon introduced by Microsoft in Office 2007 is actually a container for other toolbar items. The ribbon is the replacement for the classic menus, toolbars, and is supposed to be more efficient and discoverable by the user. In fact you see a lot more on the "ribbon" than in the classic menu.

Home

The next figure shows the Home menu with its toolbar arranged from left to right and divided into sections. The Run toolbar item with the title Views when clicked would run the report open in the design view (in fact, even without a report open in the design view, the report can be run. The result would be the current date and time getting displayed in the center of the screen of an untitled report which has just ExecutionTime as the only item in the report).

The Font, Paragraph, Border, and Number toolbar sections become enabled if parts of a report need editing. The formatting of textboxes in the report, the formatting of numbers in the report, and the alignment of components in the layout can all be independently managed using these toolbar items.

Insert

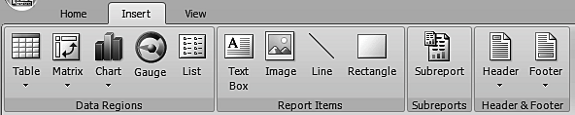

When you click on the Insert menu item on the "ribbon", the tabbed page for this item is displayed as shown in the following screenshot:

It has four sections: Data Regions, Report Items, Subreports, and Header & Footer. These are all the normal items that are used either individually or together to make up a report. There can be more than one data region in a report.
